Reliable PCB & PCBA Manufacturer

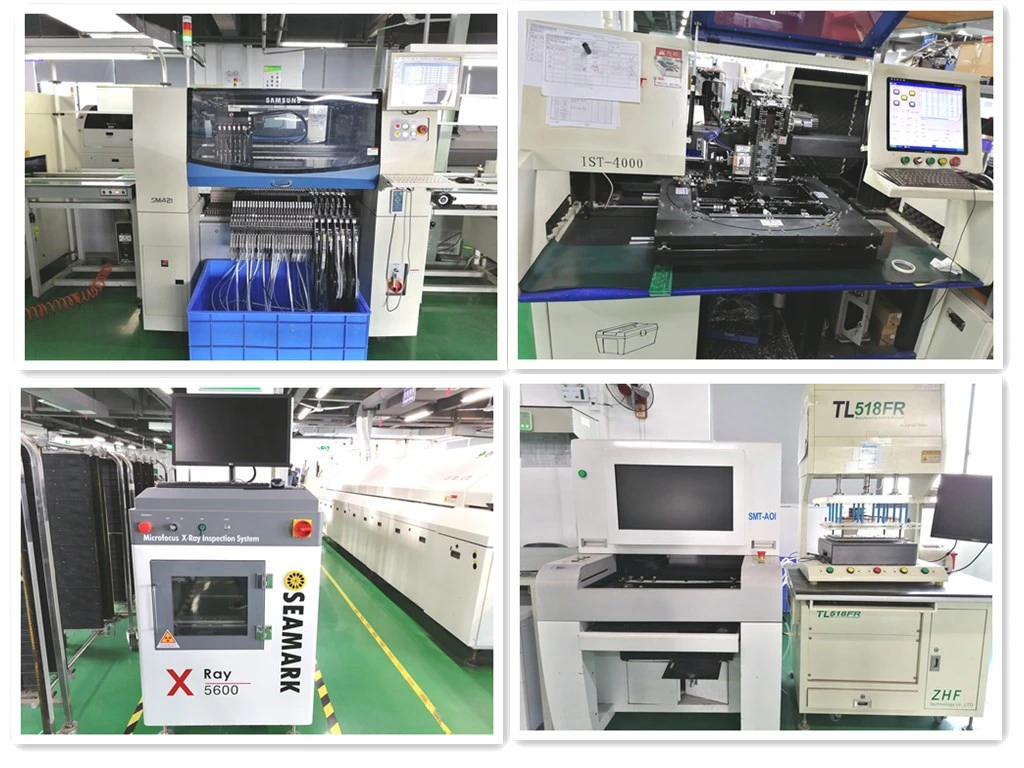

Suntek Electronics is a professional PCB, PCBA solution service provider specializing in one-stop service from PCB fabrication, components purchasing, PCB assembly to complete products building.
|Key Specifications/Special Features:|
|Type||Rigid, Flexible, Rigid-Flexible|
|Material||FR4, CEM1, CEM3, Aluminum, High Frequency Board|
|Shape||Retangular, Round, Slots, Cutouts, Complex, Irregular|
|Cutting||Shear, V-score, Tab-routed|
|Board Thickness||0.2-4mm, regular 1.6mm|
|Copper Thickness||0.5-4oz, regular 1oz|
|Solder Mask||Green, Red, Blue, Yellow, etc.|
|Silk Screen||White, Black, etc.|
|Silk Screen Min Line Width||0.006" or 0.15mm|
|Min Trace/Gap||0.1mm or 4mils|
|Min Drill Hole Diameter||0.01",0.25mm or 10mils|
|Surface Finish||HASL, ENIG, OSP, etc.|
HDI PCB Boards contain blind and/or buried vias and often contain microvias of .006 or less in diameter. They have a higher circuitry density than traditional circuit boards.
High TG PCB:
The general TG plate is more than 130 degrees, the high TG is generally greater than 170 degrees, and the medium TG is more than 150 degrees.
High Frequency PCB:
RO4003C, RO4350B, Ro3003, Ro3010, and RT5880 etc with frequency typically in the range from 500MHz to 2GHz, products are applied to power devider,radar,satellite system, mobile phone reception base station and so on.
Carbon Ink PCB:
As carbon ink pcb has very good resistance value that will help supply good conductivity. Carbon ink pcb is widely used in automotive filed, medical electronics,communication equipment and so on.
Special Material PCB:
Rogers4350,Rogers4003,Arlon 25FR,25N for Ceramic PCB powder filling, Rogers series, Taconic series,Arlon series,Nelco series ect for PTFE high frequency material.
Thick Copper PCB:
Ensure that there is enough thick copper plating in the hole to ensure that the resistance is within the range of the process requirements. 70% of the circuit board to complete the use of 35um of copper foil thickness, some will use 70um , 105um ,140um copper thickness and so on.
Welcome to share your gerber file for us to quote.
