low cost cnc wire cutting machine price factory

Technique parametersTechnical parameterUnitDK7732ZAATable size (W*D)mm440×680Table travel (X*Y)mm320×400Table size(U*V)mm70x70Max. workpiece weightkg600Max. thickness of workpiecemm400Max. taper angle/workpiece thickness ±6°/80mmMolybdenum Dia.mmφ0.15~φ0.2mm(recommend φ0.18mm)Max. wire fee

Featured Products

Technique parameters
Technical parameterUnitDK7732ZAA
Table size (W*D)mm440×680
Table travel (X*Y)mm320×400
Table size(U*V)mm70x70
Max. workpiece weightkg600
Max. thickness of workpiecemm400
Max. taper angle/workpiece thickness ±6°/80mm
Molybdenum Dia.mmφ0.15~φ0.2mm(recommend φ0.18mm)
Max. wire feed ratem/sec1~11.4m/sec  frequency adjustable
Machining precisionmm≤0.012
Max. machining speedmm2/min160
Surface roughnessμmone time Ra≤2.5  three times Ra≤1.2
five times Ra≤1.0
Motor type X,Y,U,V stepper motor
axis controlled 4 axis simultaneous
Min.control pacemm0.001
Power supply 380V,3Ph,50Hz
Max. working currentA12
P ower consumptionKw1
Work liquid JR3A
Water tankL90
Filtering mode Paper filter/Italy pump
Closed protective cover standard
Machine weightkg1800
Machine dimensionmm1800×1400×1850

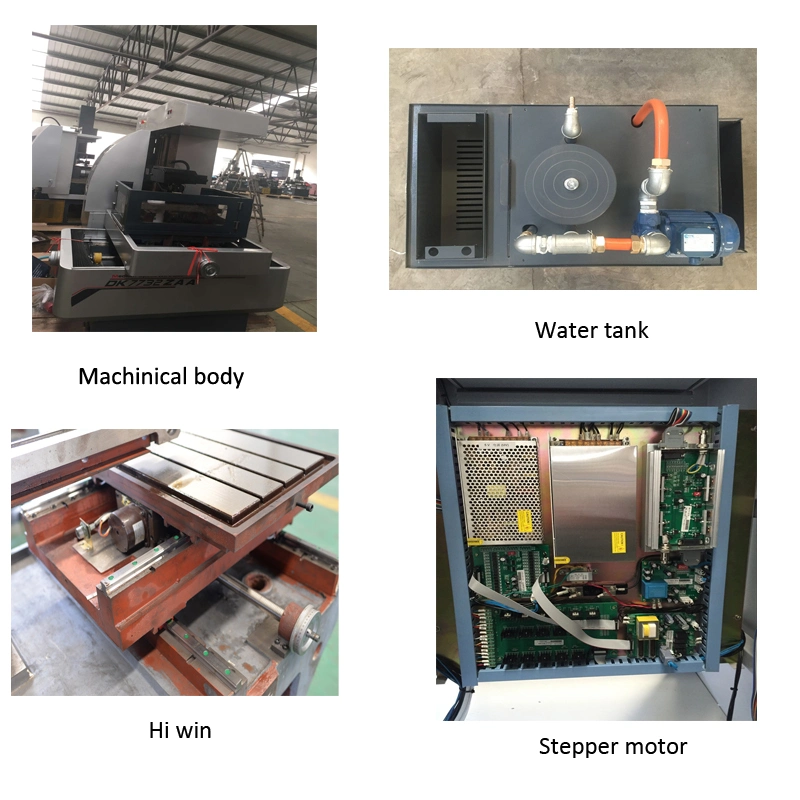

Product show
Low Cost CNC EDM Wire Cutting Machines Price Factory
Factory
Low Cost CNC EDM Wire Cutting Machines Price Factory

Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.

The R&D, production and marketing are the main component of the companyAs shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.

The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.

TOPSCNC people wish to share success with you in the future!

Customer
Low Cost CNC EDM Wire Cutting Machines Price Factory

Low Cost CNC EDM Wire Cutting Machines Price Factory
Certificate

Low Cost CNC EDM Wire Cutting Machines Price Factory


Service

1) Quality : We take care of the product quality in order to provide good service to our customers.
 2)Warranty: One year after shipment,consumables are not included.
 3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 18--25 days
6) Packing : Standard export wooden cases
7) Port: Shanghai



Low Cost CNC EDM Wire Cutting Machines Price Factory
