2021 China High Quality Low Price Touch Screen Hospital Anesthesia Machine S6600

S6600 Superstar top-grade anesthesia machine with workstation Product DescriptionProduct ApplicationThe Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. Superstar Medical Anesthesia Systems offer you the choices you need in ventilatio

Featured Products

S6600 Superstar top-grade anesthesia machine with workstation

Product Description

Product Application

The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. Superstar Medical Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique. what's more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.
SPECIFICATIONS FOR S6600 ANESTHESIA MACHINE
Ventilation modes
Manual, (V-CMV)IPPV, (P-CMV)PCV, (P-S1MV), (V-S1MV), PSV, PRVC


Mian ventilator parameter
Tidal volume(Vt)
0, 10 mL ~ 1500 mL
Frequence(Freq)
4bpm ~ 100 bpm
I/E
4:1~1:10








Ventilator parameter

PEEP
0cmH2O ~ 30 cmH2O
Rapid oxygen supply
35L/min-75L/min
Pressure trigger
-1cmH2O~-20cmH2O
Flow trigger
0.3 L/min,1L/min~15L/min
Pressure support
3cmH2O~50cmH2O
Pressure limit
10cmH2O~100cmH2O
Inspiration apnea
OFF, 5%~60%
Inspiration time
0.2s~5s
Trigger
5%~95%
SIMV frequency
4bpm~60bpm
Rise time
0s~2s






Monitored Parameters

Frequence(Freq)
0bpm~120bpm
Tidal volume(Vt)
0mL~2500mL
Minute volume
0L/min~100L/min
Oxygen concentration
15 % ~ 100 %
Airway pressure
-20cmH2O~100cmH2O
Inspiration platform pressure
0cmH2O~100cmH2O
PEEP
0cmH2O~70cmH2O
I:E
4:1~1:10




Oscillographs display
P-T(pressure - time)
F-T(flow - time)
P-V loop (pressure - volumeloop)
V-T(volume - time )
Lung function loop
ETCO2-Time










Alarm and protection
VT UPPER LIMIT
5mL~2000mL
VT LOWER LIMIT
0mL~1595mL
MV upper limit
0.1L/min~100L/min
MV lower limit
0.0L/min~99.9L/min
Respiration frequency upper limit
2bpm~100bpm
Respiration frequency lower limit
0bpm~98 bpm
FIO2 upper limit
20%~100%
FIO2 lower limit
18%~98%
Airway pressure upper limit
2cmH2O~100cmH2O
Airway pressure lower limit
0cmH2O~98cmH2O
Apnea
20s~40s
Oxygen concentration never lower than 25% when N2O start







Testing
Automatic leakage compensation testing.
Patient circuit leakage compensation and automatic compliance compensation.
Patient monitor and AG monitor can be equipped.
Patient monitor and AG monitor can be equipped.
Manual ventilator, mechanical ventilation and standby.
Waveform:P-T, F-T, V-T, Lung function loop, ETCO2, Anesthesia gas, oxygen concentration, N2O concentration.
Self-testing visible
Alarming visible
ACGO function
Parking Size
Wooden case packing size:870*1000*1600mm , G.W: 235KG, N.W: 160KG,
including anesthesia ventilator, not including vaporizer.



Main Features

1) 15" TFT LCD touch screen displays the Ventilation parameters, Alarming information and Waveform.

2) Electronic flow meter, instantly know the fresh gas flow to your patient.

3) Integration breathing circuit design, ensure easy operating and keep tidy.

4) Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

5) Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.

6) Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

7) Real time pressure-time, flow-time loop graphics and high precision ETCO2,O2 concentration detection function included.

8) Vital sign monitor and Anesthetic gas monitor are optional.




Detailed Images


Machine Parts

2018 China Top Quality Cheap Price Touch Screen Hospital Anesthesia Machines S6600

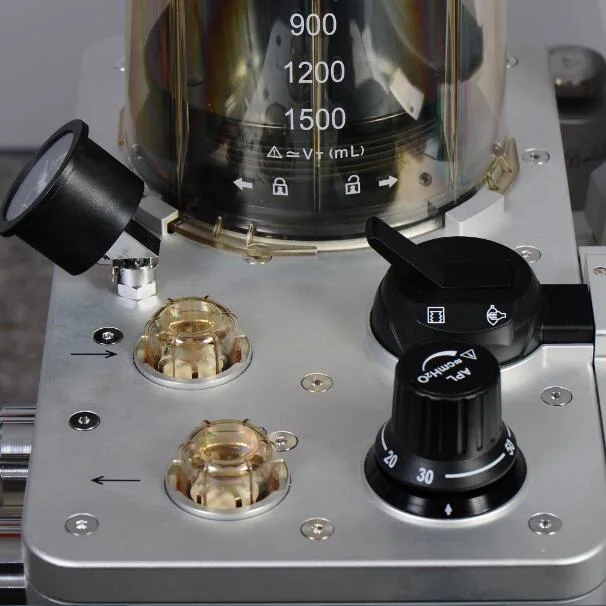

Name: APL Valve
Brand: Superstar
Original: China
Regulate the pressure and limit the pressure rise in the respiratory circuit.



Main Features

2018 China Top Quality Cheap Price Touch Screen Hospital Anesthesia Machines S6600

Name: Bellow
Brand: Superstar
Original: China
Control the Tidal Volume to adapt children and adult.





Machine Parts

2018 China Top Quality Cheap Price Touch Screen Hospital Anesthesia Machines S6600


Name: Breathing circuit
Brand: Superstar
Original: China
Deliver anaesthetic gas and fresh gas to the patient.



Main Features

2018 China Top Quality Cheap Price Touch Screen Hospital Anesthesia Machines S6600

Name: Electronic flowmeter
Brand: Superstar
Original: China
Display adjustable parameters, monitoring parameters, alarm informations and ocsillographs on the screen.
