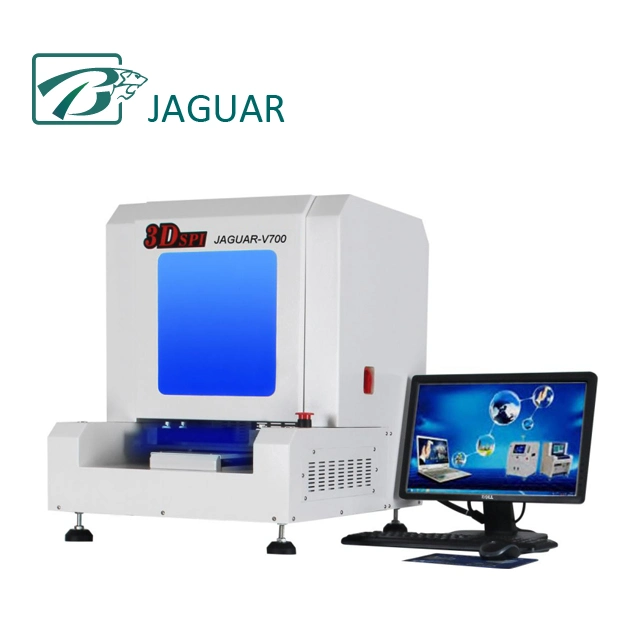

3D SPI Machine for Solder Paste Inspection Machine
Specifications:
Types | Items | Specifications | ||
Inspection | Camera | Digital High Speed CCD 5M Pix | ||
Light | Ring R/G/B LED and White LED | |||
FOV | 32mm*32mm(20μm) | |||
Speed Per FOV | <0.6s | |||
Detect | Solder/Red gum: Volume,Area,Height, Shape,Shift,Bridge,Overflow | |||
Defect | None,Shift,More,Less,Bridge,Pull, Shape,Gold finger,Height,Overflow | |||
Height Range | 10~400um | |||
Area Range | 0.15mm×0.15mm~10mm×10mm | |||
Height Accuracy on a Certificated Target | 1μm | |||
Height/Area/Volume Repeatability on a Certificated Target | <1μm@3sigma | |||
GR&R | <10% | |||
Software | OS | Windows 7 | ||
Vision | Spec. | Dual 3D Projection(Single optional)avoid shadow and reflection | ||
UI | GUI/Easy use,support English/Chinese/Big5 | |||
Result | 2D/3D true color | |||
MARK | 2 Marks/Board or 2 Marks/Array, support bad mark | |||
Program | Gerber 274D/X,CAD,Offline program,Bare Board Teach | |||
SPC | Offline SPC | Support | ||
Chart | Any Time Chart | |||
Histogram/Control/Compare chart | Volume,Area,Height,Shift | |||
Export | Excel,Jpg,Bmp | |||
Hardware | PCB Transmit System | Bottom-up fix; Auto transmit and width correct based on SMEMA; Height: 900±20mm | ||
PCB Size | 50mmx50mm`330mmx250mm | |||
PCB Thickness | 0.3mm~3mm | |||
Max PCB Warp | <2mm | |||
X,Y Platform | Motion | Servo Motor Control | ||
Position Accuracy | <1μm | |||
Speed | 700mm/s | |||
Control system | Computer | Industrial computer:Intel 4 core/8G DDR/500G HD | ||
Display Output | 19 inch LCD | |||
Others | Machine Dimensions | 100cmx100cmx155cm | ||
Weight | About 600 KG | |||
Power Supply | AC220V±10%,50/60Hz,1200W | |||
Working Environment | Temperature: 10-40ºC,Humidity: 30-80%RH | |||
